Vertical Cavity Surface Emitting Laser (VCSEL)

What is VCSEL (Vertical Cavity Surface Emitting Laser)?

VCSELs have progressed from laboratory devices to industrial mass-production devices in the last few years. A vertical-cavity surface-emitting laser diode (VCSEL) is a semiconductor-based laser diode that emits light or an optical beam vertically from its top surface. The remarkable qualities and properties of this laser type have eventually outperformed Edge Emitting Lasers, which emit light from the side, and Light Emitting Diodes, which emit light from the sides and top.

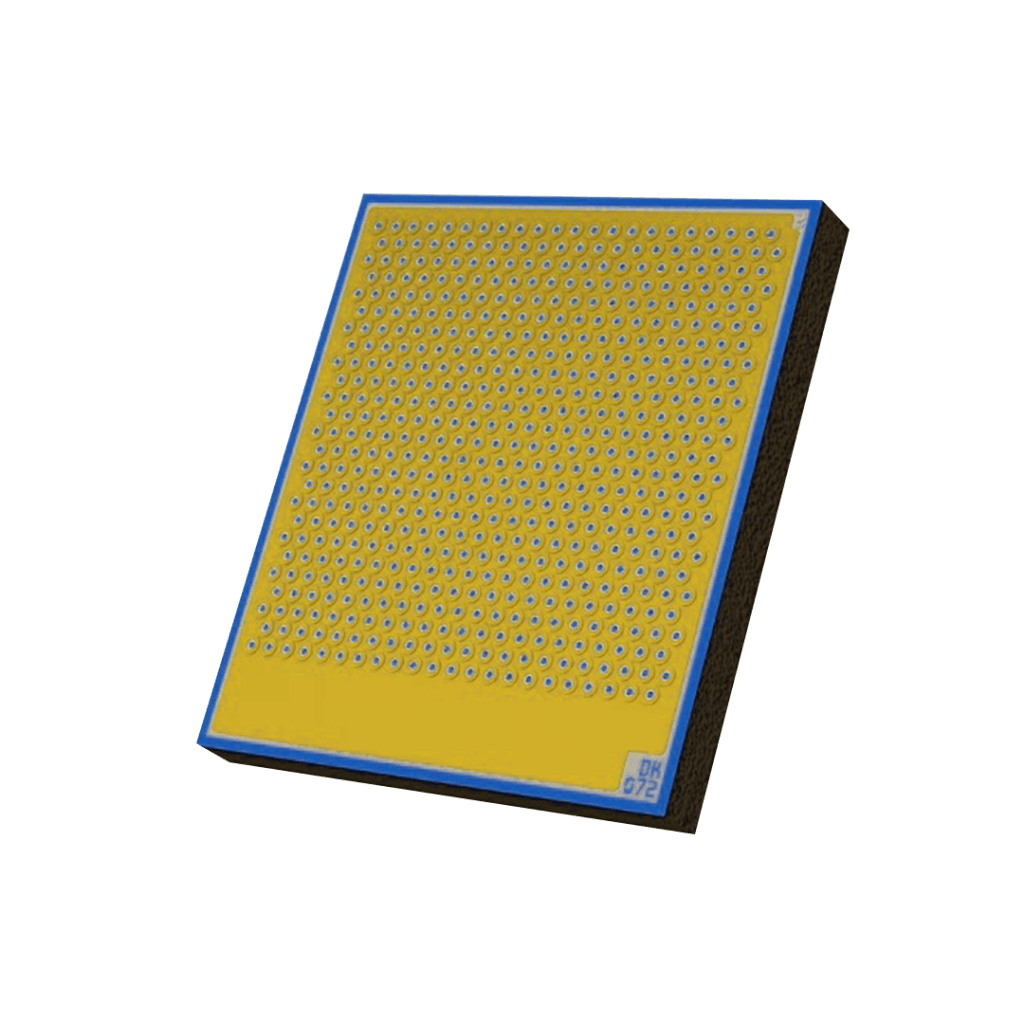

A vertical cavity surface emitting laser (VCSEL) is a surface-emitting semiconductor light source that emits laser beams in a direction perpendicular to its top surface. Individual VCSEL emitters (or “apertures”) are very small, typically around 10 microns in diameter, but most often they are grouped into 2D arrays which collectively generate a much higher output power level.

There are 10 key parameters used to characterize VCSEL :

(1) Wavelength
(2) Output Power
(3) Spectral Width
(4) Beam Divergence Angle
(5) Emission Area
(6) Emitter Pitch
(7) Wavelength Drift with temperature
(8) E/O Conversion Efficiency
(9) Rise Time / Fall Time
(10) Operation current and voltage range

Some of the significant advantages of VCSEL technology are wavelength stability, wavelength uniformity and spectrum width, wavelength temperature sensitivity, high-temperature operation, more power per unit area, higher beam quality, high reliability, scalability, and low cost.

Vertical cavity surface emitting lasers (VCSELs) have been used for many different applications.

(1) LiDAR Systems
(2) 3D Scanners
(3) Proximity Sensors
(4) Telecommunications
(5) Laser Printers

These characteristics of VCSEL make them an ideal component or technology for a wide range of applications. Some of the most frequent uses of VCSEL include gas sensing, biological sensing, computing, smart vehicles, smartphones, and optical communication.

Center Wavelength(nm)	Spectral Width(nm)	Output Power(W)	Aperture Pitch(um)	Array Size(um)	Part Number
Center Wavelength(nm)	Spectral Width(nm)	Output Power(W)	Aperture Pitch(um)	Array Size(um)	Part Number
905	<10	35	122 x 122	2440 x 2430	IPVSC0901
940	<10	35	122 x 122	2440 x 2430	IPVSC0902

VCSEL Structure

A typical Vertical-Cavity Surface-Emitting Laser is composed of multiple layers. The top layer is a p-contact layer. The succeeding layer, i.e. the second layer, is a high-reflectivity mirror with a reflectivity of 99 per cent. The third layer is an active region that turns the light beam into a circular beam.

The laser cavity is located in the VCSEL’s fourth layer, which is the center layer. The active gain zone is where lasing occurs. Again, an oxide layer is present beneath the center layer to limit the light. The exterior layer is a distributed Bragg reflector (n-doped), while the bottom layer is a reflecting mirror having high reflectivity.

In a VCSEL, the active layer is sandwiched between two highly reflective mirrors composed of numerous quarter-wavelength thick layers of alternating high and low refractive index semiconductors. The reflectance of these mirrors is usually between 99.4 and 99.9 per cent. For this reason, the light oscillates perpendicular to the layers and exits through the top.

Types of Vertical Cavity Surface Emitting Laser

There are three primary types of VCSEL based on the structure:

1. A top-emitting structure with proton implantation to confine the current,

2. A selectively-oxidized top-emitting structure to confine the optical modes and the current, and

3. A mounted bottom-emitting selectively-oxidized structure.
